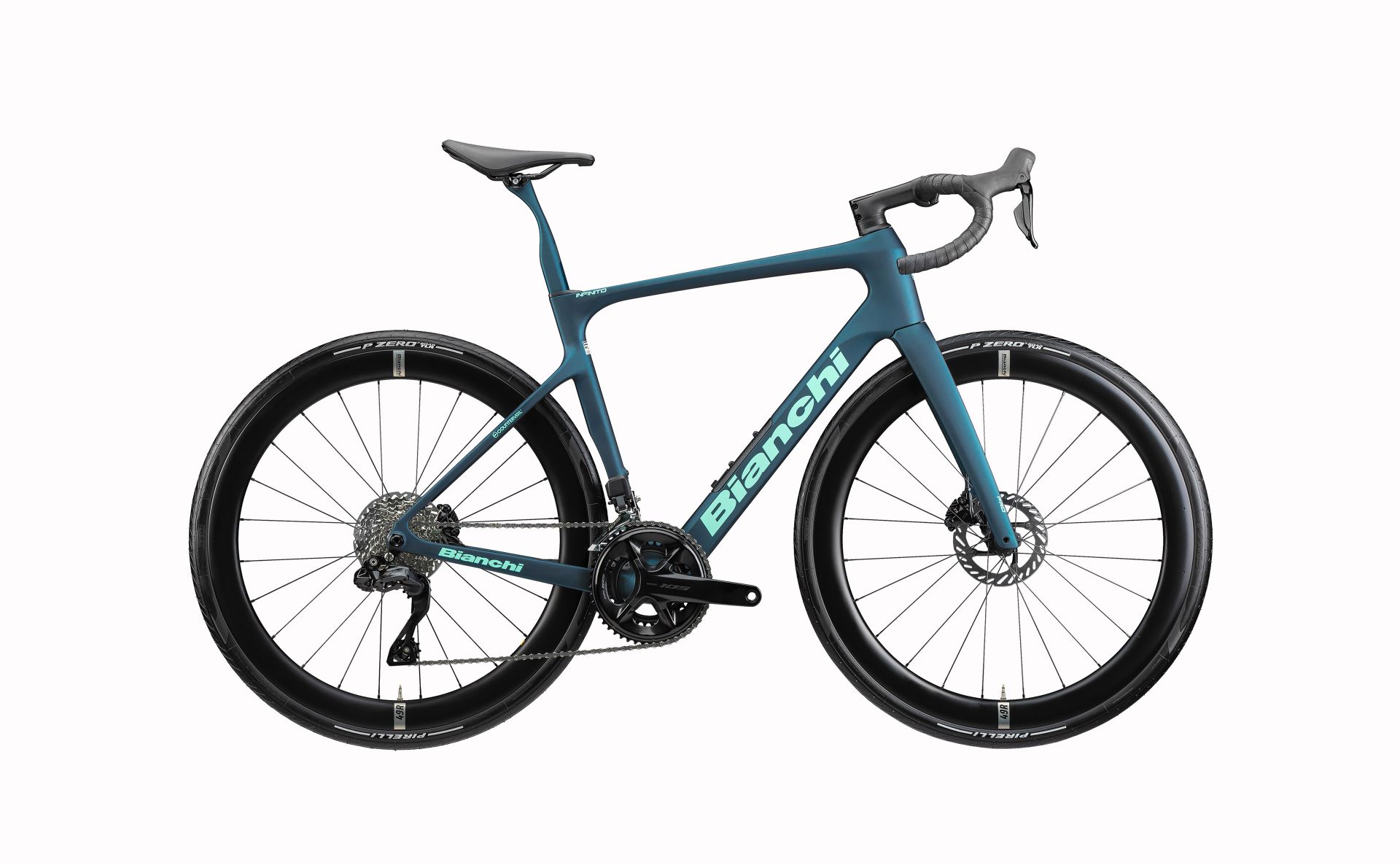

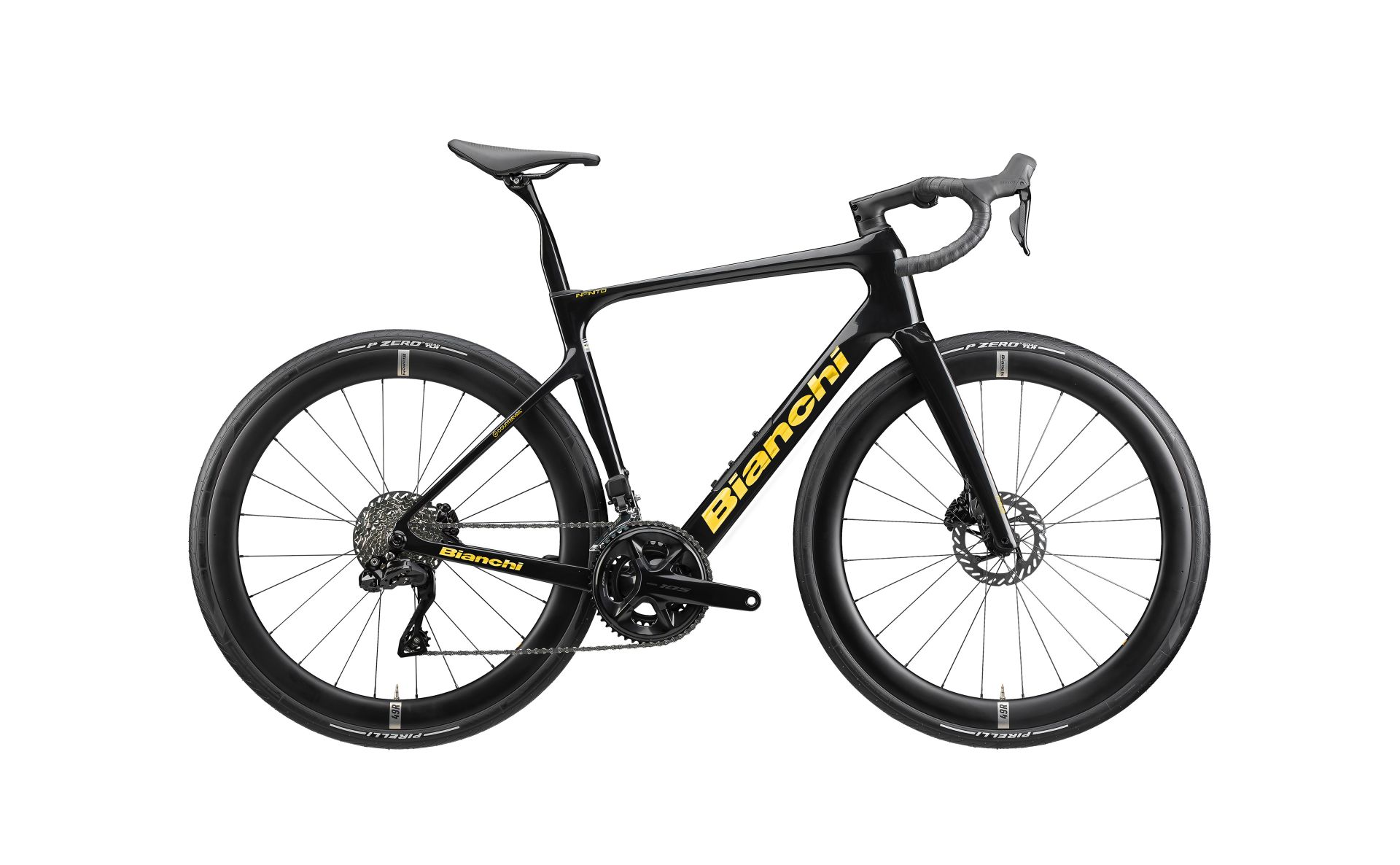

Bianchi Infinito Pro 105 Di2

Tech specs

• Frameset

  1. Frame

     Bianchi Infinito Pro, Flat mount 140/160, PressFit 86.5x41 mm, Thru Axle 12x142 mm, Sram UDH compatible, Max chainring compatibility: 46-54T, Internal cable routing, Tire clearance: ETRTO 622-40 sizes 47-50-53-55-57-59-61

  2. Fork

     Bianchi Infinito, Flat mount disc 140/160, Thru axle, OLD: 100 mm, Steerer tube diameter: 1"1/8

  3. Headset

     Acros for internal cable routing

• Drivetrain

  1. Shifters

     Shimano 105 Di2, shifter lever ST-R7170, caliper BR-R7170

  2. Rear Derailleur

     Shimano 105 Di2, RD-R7150, 12sp

  3. Front Derailleur

     Shimano 105 Di2, FD-R7150

  4. Crankset

     Shimano 105, FC-R7100, Hollowtech 2, 50x34T Crank length: 165 mm (47-50 cm); 170 mm (53- 55 cm); 172.5 mm (57-59 cm); 175 mm (61 cm)

  5. Bottom Bracket

     Shimano SM-BB71-41B, press fit type for road

  6. Chain

     Shimano CN-M7100

  7. Cassette

     Shimano 105, CS-R7101 11-36T, 11-12-13-14- 15-17-19-21-24-28-32-36T

• Brakes

  1. Brakes

     Shimano BR-R7170 Hydraulic disc brake

  2. Brake Levers

     Included in the shifter

  3. Rotor

     FRONT: Shimano RT-CL700 Center Lock, 160 mm / REAR: Shimano RT-CL700 Center Lock, 160 mm

• Wheels

  1. Wheels

     Bianchi B 49R, Carbon rim, 49 mm profile, 700x25c, 24h, Tubeless ready, Ratchet system, HG11 body

  2. Tire

     Pirelli P Zero Road TLR, 35-622, 120 TPI

• Cockpit

  1. Stem

     Bianchi AL6061, fully internal cable routing stem, compatible with Acros ICR system Size: 90 mm (47-50 cm); 100 mm (53-55 cm); 110 mm (57-59 cm); 120 mm (61 cm)

  2. Handlebar

     Bianchi Aero Compact handlebar, alloy, diameter 31.8 mm, reach 74 mm, drop 116 mm Size: 380 mm (47-50 cm); 400 mm (53-59 cm); 420 mm (61 cm)

  3. Grips / Extensions

     Bianchi Hexagon tape, 2.5 mm thickness, black

• Saddle

  1. Seatpost Clamp

     Bianchi Custom

  2. Seatpost

     Bianchi Infinito, Countervail technology, full carbon, aero-flex shape length: 320 mm, 0 offset (47-53 cm); 350 mm, -20 mm offset (55-61 cm)

  3. Saddle

     Bianchi Manganese Rail, length 260 mm, width 150 mm

• Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
