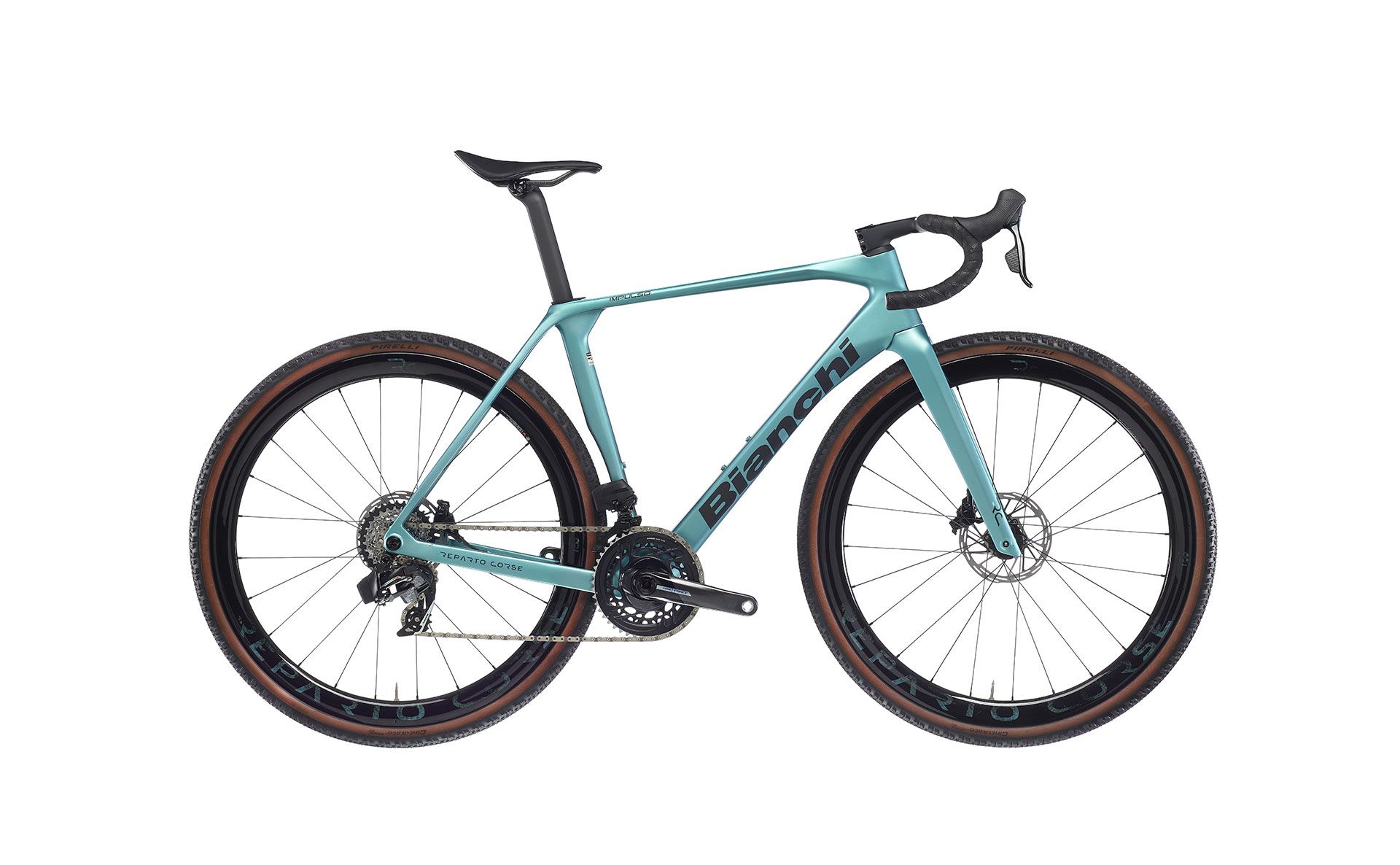

Bianchi Impulso RC Force Etap AXS

• FRAMESET

  1. FRAME

     Disc Brake Specification: Flat Mount 140/160 Bottom Braket Standard: PressFit 86.5 X diam.41 Rear Axle: thru12 OLD (Over-Locknut-Dimension): 142 mm Max Chainring Compatibility: 46T-52T (Shimano) - 43T-48T (SRAM) Tire Clearance: ETRTO 622-42mm Material: HM

  2. FORK

     Bianchi Impulso Integrated Fork Disc Brake Specification: Flat Mount 140/160 Front Axle: thru12 OLD (Over-Locknut-Dimension): 100 mm Tire Clearance: ETRTO 622-42mm Steer tube Diameter: 1 1/8" Material: HM-HS Carbon Fiber Composite

  3. HEADSET

     Bianchi Custom Acros ICR (Internal Cable Rounting)

• DRIVETRAIN

  1. SHIFTERS

     Sram Force AXS HRD Shift System

  2. REAR DERAILLEUR

     Sram Force AXS

  3. FRONT DERAILLEUR

     Sram Force AXS

  4. CRANKSET

     Sram Force 46/33T Crank Length: 170mm-XS(47)-SM(51), 172.5mm-MD(55)-LG(58), 175mm-XL(61)

  5. BOTTOM BRACKET

     Sram DUB PressFit Road 86.5 X diam.41

  6. CHAIN

     Sram Force Flattop, PowerLock D1

  7. CASSETTE

     Sram Force XG-1270, 10-36T Driver Body Interface: XDR

• BRAKES

  1. BRAKES

     Sram Force Pad Type: Steel-Backed Organic

  2. ROTOR

     Sram Paceline Rotor Hub Interface: Centerlock Rotor Diameter: 160 mm (front&Rear)

• WHEELS

  1. WHEELS

     Reparto Corse RC43, high modulus carbon textile with 3K finishing, Sealed cartridge bearings with CERAMIC balls, Compatibility HG FW body/XDR FW body, ASTM classification: 2, Tyre compatibility: tubeless ready and clincher, Recommended tyre size: 700c, fr

  2. TIRE

     Pirelli Cinturato Gravel RC, 700 x 40c, 60TPI- TLR, Folding, Tan sidewall

• COCKPIT

  1. HANDLEBAR

     Reparto Corse AeroFlare Flare: 16° Drop: 120mm Reach 80mm Steerer Interface Diameter: 1 1/8"" HandleBar Sizes: 90/400-SX(47) ; 100/400-SM(51); 110/420-MD(55)-LG(58); 120/440-XL(61) Material: HM-HS Carbon Fiber Composite

  2. GRIPS

     La Spirale Ribbon cork

• SADDLE

  1. SEATPOST

     Bianchi Custom D-Shape Offset: 20mm Back Seatpost lengths: 300mm-SX(47), 350mm- SM(51) MD(55), 380mm-LG(58) XL(61) Material: HM-HS Carbon Fiber Composite

  2. SADDLE

     Bianchi RC139 carbon, microfiber cover, Inserts: PWR gel, carbon fiber shell, carbon rails, lenght 250mm, wide 139mm, weight 145g

Based on component availability, Bianchi reserves the right to make changes on specifications without notice.

GEOMETRY

Impulso (all)
SIZE	A	B1	C	D	E	F	G	G1	H	I	X	Y	W
XS	410	515	425	70	100	592	75°	70,5°	50	391	376	517	1007
SM	450	526	425	70	118	600	74,5°	70,5°	50	391	378	534	1014
MD	490	550	425	70	135	610	74°	71,5°	50	391	391	554	1025
LG	520	572	426	70	162	628	73,5°	71,5°	50	391	401	580	1045
XL	550	600	428	70	190	645	73°	72°	50	391	414	608	1064
