Inside this sporty commuter lies the wild and rugged heart of an explorer. With huge range, robust components and grippy mixed-surface tires, the all-new Tesoro Neo X is built to get you to it all week, and away from it all on the weekend.
City streets and adventurous backroads
Commuting, touring, exploring
Model Code | C66232U |

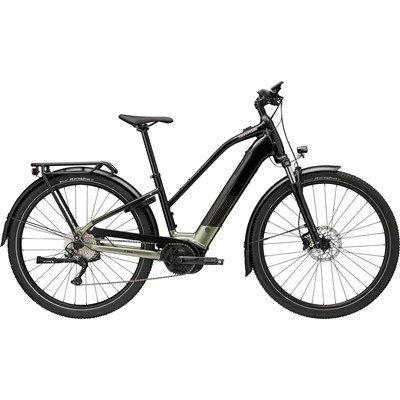

Name | Tesoro Neo X 2 StepThru |
Category | Electric |
Platform | Tesoro Neo X |
Segment | E-Touring |
Frame | SmartForm C2 Alloy, step-thru, removable 625Wh downtube battery, integrated front running light, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection |
Fork | SR Suntour Mobie A32, 63mm travel, coil with preload adjuster, lockout, crown light mount, 44mm offset |
Rear Shock | Null |
Rims | Alloy, double wall, 32 hole, 25mm internal width, disc-specific |
Hubs | (F) Shimano MT400B, 110x15mm thru-axle / (R) Shimano UR600, 135QR |
Spokes | Stainless Steel, 14g |
Tires | Continental Race King, 27.5x2.20" 55-584 (SM), 29x2.20" 55-622 (MD-LG) |
Pedals | Cannondale Fitness |
Crank | FSA for Bosch |
Bottom Bracket | Null |
Chain | Shimano HG54, 10-speed |
Rear Cogs | Shimano Deore M4100, 11-42, 10-speed |
Front Derailleur | Null |
Rear Derailleur | Shimano Deore M4120, 10-speed |
Shifters | Shimano Deore M4100, 10-speed |
Handlebar | Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 740mm |
Grips | Cannondale Ergo Fitness Dual Density, Lock-on |
Stem | Cannondale 3 with Intellimount, Alloy, 31.8mm clamp |
Headset | Semi-Integrated, Tapered; 1-1/8"-1-1/2" |
Brakes | Shimano MT400 hydraulic disc, 180/180mm RT30 rotors |
Brake Levers | Shimano MT400 hydraulic disc |
E-bike Display | Bosch Intuvia / LED remote |
E-Bike Battery | Bosch PowerTube 625Wh |
E-bike Charger | 4A |
E-bike Drive Unit | Bosch Performance Line, Smart System, 25km/h |
Saddle | Fizik Essenza Moderate |
Seatpost | Cannondale 3, 6061 Alloy, 31.6 |
Speeds | 10 |
Weight | |
Sizes Available | SM, MD, LG |
Chain Device | Null |
Connectivity | Null |
Fork Travel | 63mm |
Frame Travel | Null |
Extra's | Integrated headtube running light, Axa Compactline 35E front light, Axa Blueline rear light, Abus framelock (key-matched with battery lock), Tubus rear rack (25kg, Racktime compatible), full-coverage fenders |
