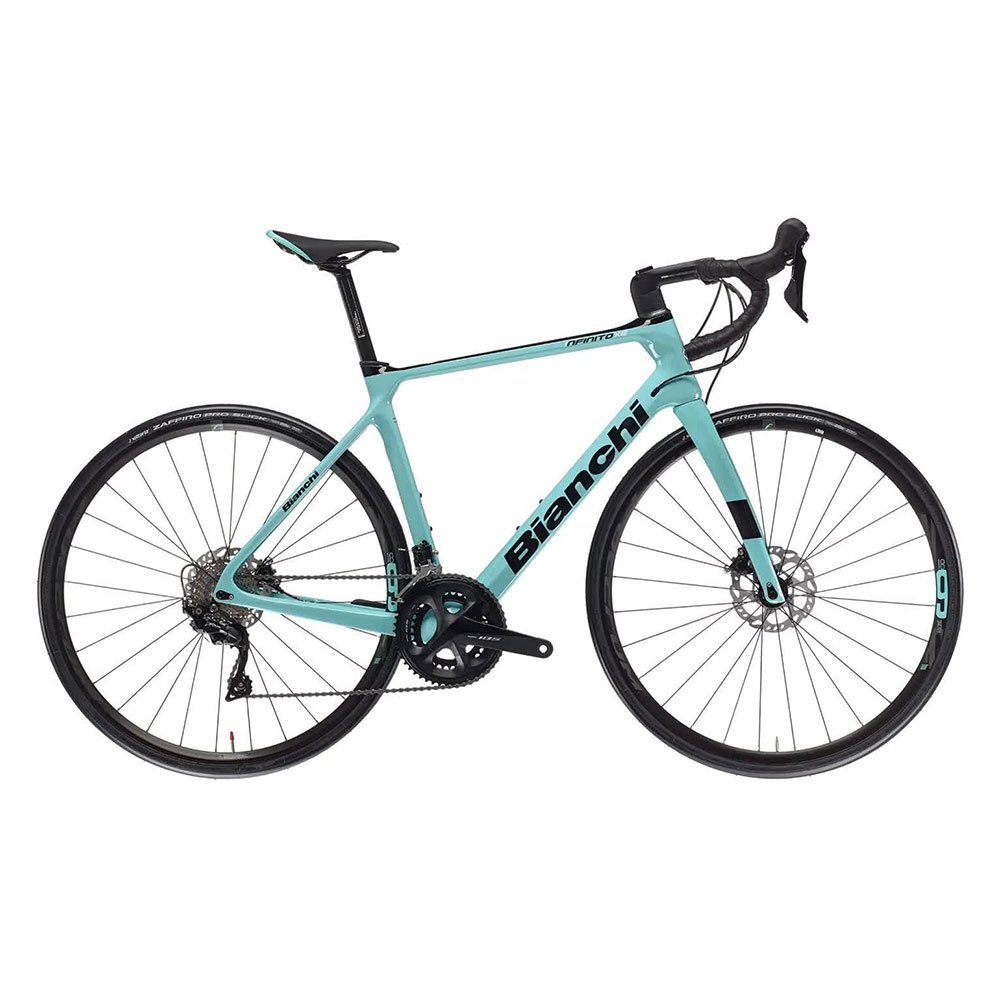

Bianchi Infinito XE Disc 105 (59cm only 2023)

by Bianchi

BIANCHI EXTENDS THE INFINITO FAMILY WITH THE ADDITION OF A NEW BIKE, PERFECT FOR THE GRANFONDO RIDERS

The geometry of the Infinito, the ultimate endurance model whose range is topped by Infinito CV, has been optimized in the WorldTour in the one-day classics, providing maximum performance with minimum stress for long distance. It also proved to be the ideal granfondo machine.

For a long day in the saddle the full carbon frame and fork creates a bike that is as good to ride as it is to look at. Available in 47, 50, 53, 55, 57, 59 and 61cm sizes and with a frame weighing just 1,100 grams and the fork 420 grams, the Infinito XE helps you savour every pedal stroke.

DISC POWER

The Infinito XE is exclusively built for disc brakes, with flat mount calipers. Thru axles both front (12x100mm) and rear (12x142mm) ensure no stress to the frame caused by braking, and with a tyre width compatibility up to 32mm the Infinito XE is capable of taking you further than ever before.

INTEGRATED LOOK

The clean lines of the bike are maintained with all hydraulic cables routed internally and the dedicated alloy seatpost has been developed for the ultimate streamlined, integrated look. Talking of streamlined, the alloy stem and spacers have been created by Bianchi for a better head tube connection, the 1 1/8” to 1.5” head tube providing stability at speed and under braking.

The characteristics of the Infinito XE are maintained across the frame sizes. The different chainstay lengths means that the bike behaves the same no matter what size you choose.

FULL SPEC:

Frame	Bianchi Infinito XE disc carbon, tapered HT 1.1/8"- 1.5", mechanical/electronic Di2 shifting compatible, compatible with 32mm tyre, PressFit 86.5x41mm BBset, thru-axle 12x142mm
Fork	Bianchi full carbon disc, 1.5" head, thru-axle 12x100mm, compatible with 32mm tyre
Headset	FSA NO.42/47CF/ACB/5D
Bottom Bracket	Shimano SM-BB71-41B, PressFit
Stem	Velomann, 3D forged alloy 6061, rise +/ - 7°, height 38mm, oversize, 1.1/8", length - 70mm (47cm), 90mm (50cm), 100mm (53cm), 110mm (55cm), 120mm (57cm/61cm)
Handlebar	Velomann Compact, flat top, alloy 6061 diameter 31.8mm, reach 80mm, drop 130mm, Size - 400mm (44/53cm), 420mm (55/59cm), 440mm (61cm)
Bar Tape	La Spirale Ribbon cork
Front Brake	Shimano BR-RS505 hydraulic disc, Shimano SM-RT70 rotor
Rear Brake	Shimano BR-RS505 hydraulic disc, Shimano SM-RT70 rotor
Brake Levers	Shimano 105 ST-R7020 2x11-speed, hydraulic disc brake, Shimano 105 ST-R7025 2x11-speed smaller lever size for sizes 47-50-53cm
Front Derailleur	Shimano 105 FD-R7000-L
Rear Derailleur	Shimano 105 RD-R7000 GS 11-speed
Shift Levers	Shimano 105 ST-R7020 2x11-speed, hydraulic disc brake, Shimano 105 ST-R7025 2x11-speed smaller lever size for sizes 47-50-53cm
Chain	KMC X11-1 EPT finish, 11-speed
Cassette	Shimano 105 CS-R7000, 11-speed
Crankset	Shimano 105 FC-R7000 50x34T, Hollowtech II, crank length - 170mm (47/53cm), 172.5mm (55/59cm), 175mm (61cm)
Front Wheel	Fulcrum Racing 918 DB, 2WF-R C19, thru-axle 12x100mm, clincher
Rear Wheel	Fulcrum Racing 918 DB, 2WF-R C19, thru-axle 12x142mm, clincher
Front Tyre	Vittoria Zaffiro Pro V 700x28, clincher
Rear Tyre	Vittoria Zaffiro Pro V 700x28, clincher
Saddle	Velomann 1966 rail steel black, open, cover PU, length/width 250/148mm
Seatpost	Velomann alloy shaft 2014, head alloy 6061, hardwares - steel, setback 25mm, length - 350mm (47/57cm), 380mm (59/61cm)
