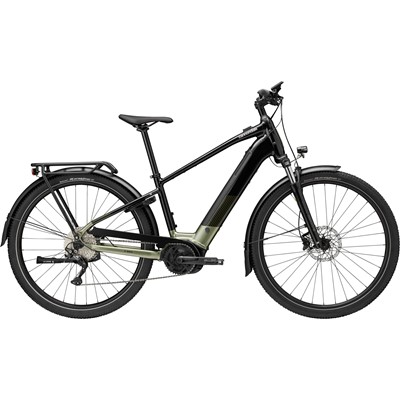

Cannondale Tesoro Neo X2

by Cannondale

Free Yourself

Inside this sporty commuter lies the wild and rugged heart of an explorer. With huge range, robust components and grippy mixed-surface tires, the all-new Tesoro Neo X is built to get you to it all week, and away from it all on the weekend.

Where it thrives

City streets and adventurous backroads

What it's built for

Commuting, touring, exploring

Highlights

Step-thru SmartForm C2 Alloy frame / bump-smoothing 63mm travel suspension fork
Shimano Deore 10-speed shifting / hydraulic disc brakes
Bosch Smart System - Performance Line 250W drive-unit / 625Wh battery / Range: up to 140km

Model Code	C66232U
Name	Tesoro Neo X 2 StepThru
Category	Electric
Platform	Tesoro Neo X
Segment	E-Touring
Frame	SmartForm C2 Alloy, step-thru, removable 625Wh downtube battery, integrated front running light, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection
Fork	SR Suntour Mobie A32, 63mm travel, coil with preload adjuster, lockout, crown light mount, 44mm offset
Rear Shock	Null
Rims	Alloy, double wall, 32 hole, 25mm internal width, disc-specific
Hubs	(F) Shimano MT400B, 110x15mm thru-axle / (R) Shimano UR600, 135QR
Spokes	Stainless Steel, 14g
Tires	Continental Race King, 27.5x2.20" 55-584 (SM), 29x2.20" 55-622 (MD-LG)
Pedals	Cannondale Fitness
Crank	FSA for Bosch
Bottom Bracket	Null
Chain	Shimano HG54, 10-speed
Rear Cogs	Shimano Deore M4100, 11-42, 10-speed
Front Derailleur	Null
Rear Derailleur	Shimano Deore M4120, 10-speed
Shifters	Shimano Deore M4100, 10-speed
Handlebar	Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 740mm
Grips	Cannondale Ergo Fitness Dual Density, Lock-on
Stem	Cannondale 3 with Intellimount, Alloy, 31.8mm clamp
Headset	Semi-Integrated, Tapered; 1-1/8"-1-1/2"
Brakes	Shimano MT400 hydraulic disc, 180/180mm RT30 rotors
Brake Levers	Shimano MT400 hydraulic disc
E-bike Display	Bosch Intuvia / LED remote
E-Bike Battery	Bosch PowerTube 625Wh
E-bike Charger	4A
E-bike Drive Unit	Bosch Performance Line, Smart System, 25km/h
Saddle	Fizik Essenza Moderate
Seatpost	Cannondale 3, 6061 Alloy, 31.6
Speeds	10
Weight
Sizes Available	SM, MD, LG
Chain Device	Null
Connectivity	Null
Fork Travel	63mm
Frame Travel	Null
Extra's	Integrated headtube running light, Axa Compactline 35E front light, Axa Blueline rear light, Abus framelock (key-matched with battery lock), Tubus rear rack (25kg, Racktime compatible), full-coverage fenders
