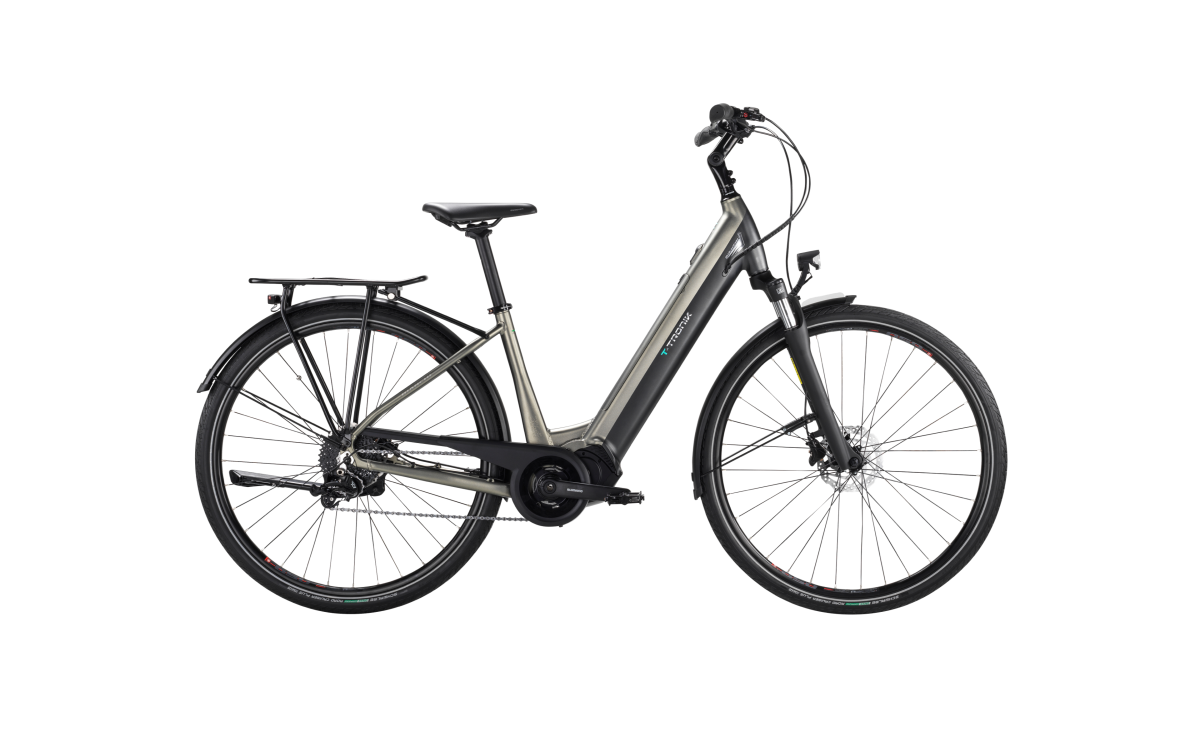

Bianchi T-Tronik C Type



The Bianchi T-Tronik C-Type brings together simplicity, functionality and style, and is designed for touring, be that on road, gravel or trails. The Shimano E6100 250W motor offers 60Nm of torque and is paired with a 417Wh Phylion integrated battery to deliver a boost for up to 60 miles. There are three settings so you can dial in assistance to suit the ride or your energy levels.

The frame is constructed from strong alloy while a 63mm travel Suntour fork effectively soaks up shock for more comfort in the saddle. A SunRace drivetrain with 9 gears in a 1x configuration provides the range for both climbs and descents and hydraulic discs take care of braking, working well in both wet and dry conditions. Kitted out with front and rear lights, mudguards, a kickstand and a Racktime rear carrier, you can get to your destination safe and dry, and carrying all the kit you need.


Frame Bianchi T-Tronik C-Type Frame 28" Tourer, suspended fork geometry, alu PG 6061 32/37 Max shell, disc brake, O.L.D.135mm, D/T battery, size
Fork Suntour SF15-NEX-E25-DS-700C-63 post mount disc brake, 1.1/8", travel 63mm, compatible with mudguard, OLD 100mm, quick release type
Headset FSA 1.1/8" 44H-N10P
Bottom Bracket Included with motor unit
Stem Velomann, 28.6mm steerer ID clamp, 31.8mm
Handlebar Velomann 31.8mm, 680mm width, 20mm rise, 15° sweep
Grips Herrmans GRIPset Oxy DD29BR/BL 130mm/130mm black-black, 22mm diameter
Front Brake Radius BH-M960, 900mm hose length, direct mount with adapter, Radius rotor RT900, 160mm, Center Lock
Rear Brake Radius BH-M960, 1700mm hose length, direct mount, with J-kit, with adapter, Radius rotor RT900, 160mm, Center Lock
Brake Levers Radius, hydraulic
Rear Derailleur SunRace, 9-speed, maximum 42T
Shift Levers SunRace DLE903N, 9-speed, with optical gear
Chain KMC e9s EPT, 9-speed
Cassette SunRace, 9-speed
Crankset Shimano FC-E6100, 170mm crank length, 38T, for chain line 46.5mm
Front Wheel Velomann 29", 23-622, 32-hole black
Rear Wheel Velomann 29", 23-622, 32-hole black
Front Tyre Chaoyang E-Liner City 700x45c, 60tpi, clincher
Rear Tyre Chaoyang E-Liner City 700x45c, 60tpi, clincher
Saddle Selle Royal, Essenza
Seatpost Velomann, length 350mm, diameter 31,6mm, Al2014 shaft and alloy head
Pedals included
Accessories SKS Mudguard profile A60S, internal cable routing on the rear mudguard, secuclip/esc clip, protector on front and rear tail, protector on front mudguard / Ursus R81 WAVE REAR, 28" kickstand, 40mm fixing plate (load 35kg) / Racktime rear carrier, RT Eco 2.0, 28", black with round stay 350mm / Herrmans Mr GO front light / Axa Juno rear light
Range 60 miles (depending on rider weight, conditions and assist level)
Motor Shimano E6100 250W, torque 60Nm
Battery 417Wh Phylion integrated battery
