C26601M |
Model Name |

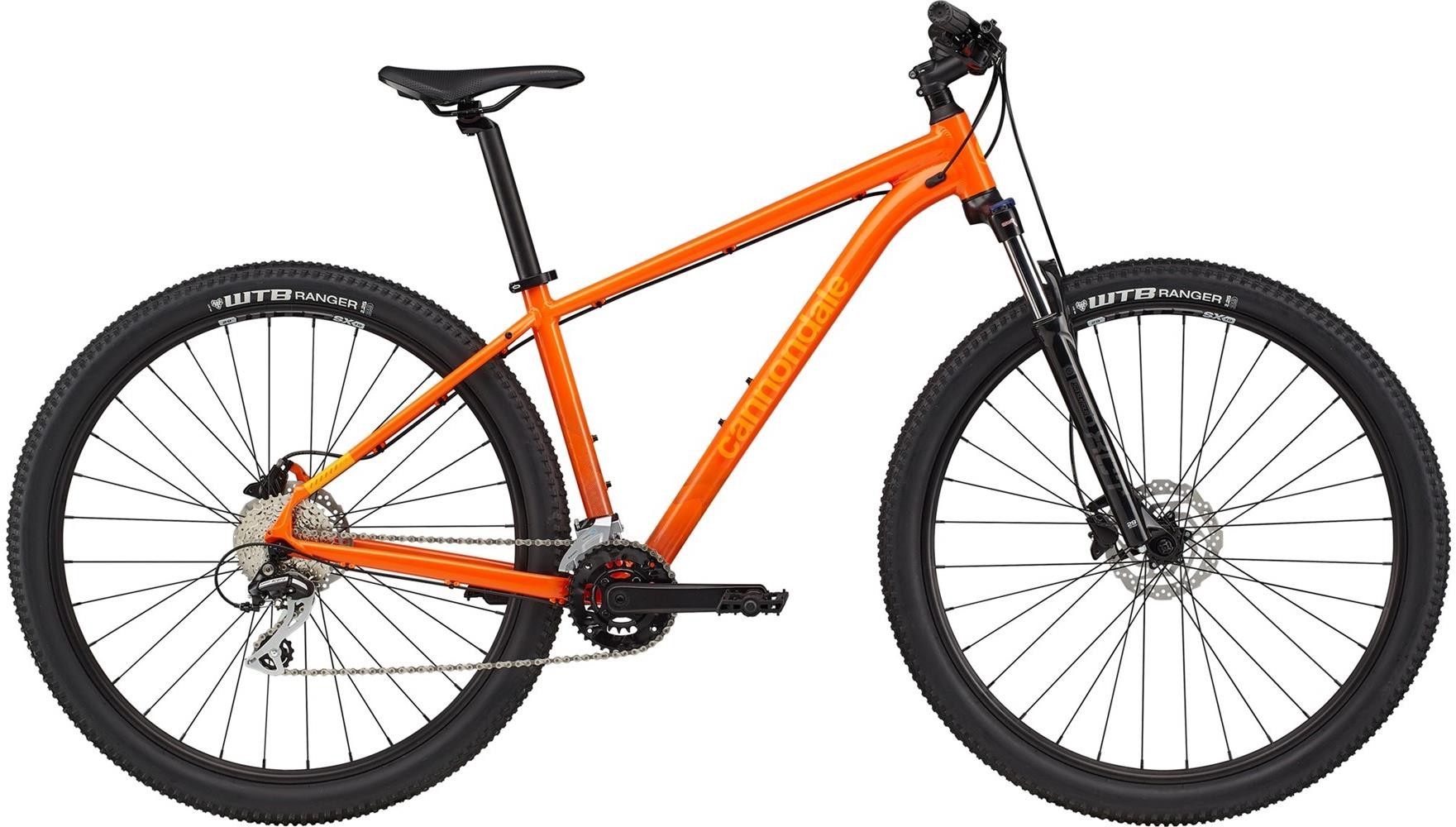

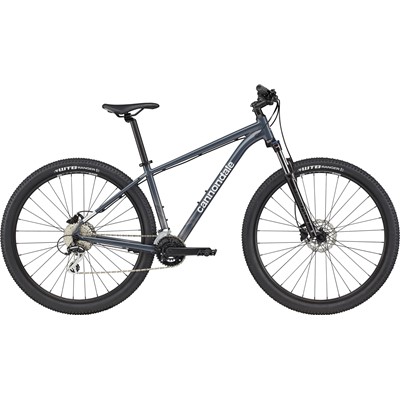

Trail 6 |
Frame |
SmartForm C3 Alloy, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, BSA-73 |
Fork |
SR Suntour XCT, 100mm, coil, 42mm offset (27.5") 46mm offset (29") |
Rims |
WTB SX19, 32h |
Hubs |
(F) Shimano HBTX 505 / (R) Shimano FHTX505 |
Spokes |
Stainless Steel, 14g |
Tires |
WTB Ranger Comp, 27.5/29 x 2.25", DNA Compound |
Pedals |
Cannondale Platform |
Crank |
Prowheel, 36/22 |
Bottom Bracket |
Cartridge, square taper |
Chain |
KMC X8, 8-speed |
Rear Cogs |
Sunrace, 11-34, 8-speed |
Front Derailleur |
Shimano Altus, 34.9 clamp |
Rear Derailleur |
Shimano Acera |
Shifters |
Shimano M315 Rapidfire Plus, 8-speed |
Handlebar |
Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm |
Grips |
Cannondale Dual-Density |
Stem |
6061 Alloy, 31.8, 7° |
Headset |
Semi Integrated, 1-1/8" |
Brakes |
Shimano MT200 hydraulic disc, 160/160mm RT10 rotors |
Brake Levers |
Shimano MT200 hydraulic disc |
Saddle |
Cannondale Stage 3 |
Seatpost |
Cannondale 3, 6061 Alloy, 31.6 x 350/400mm |
