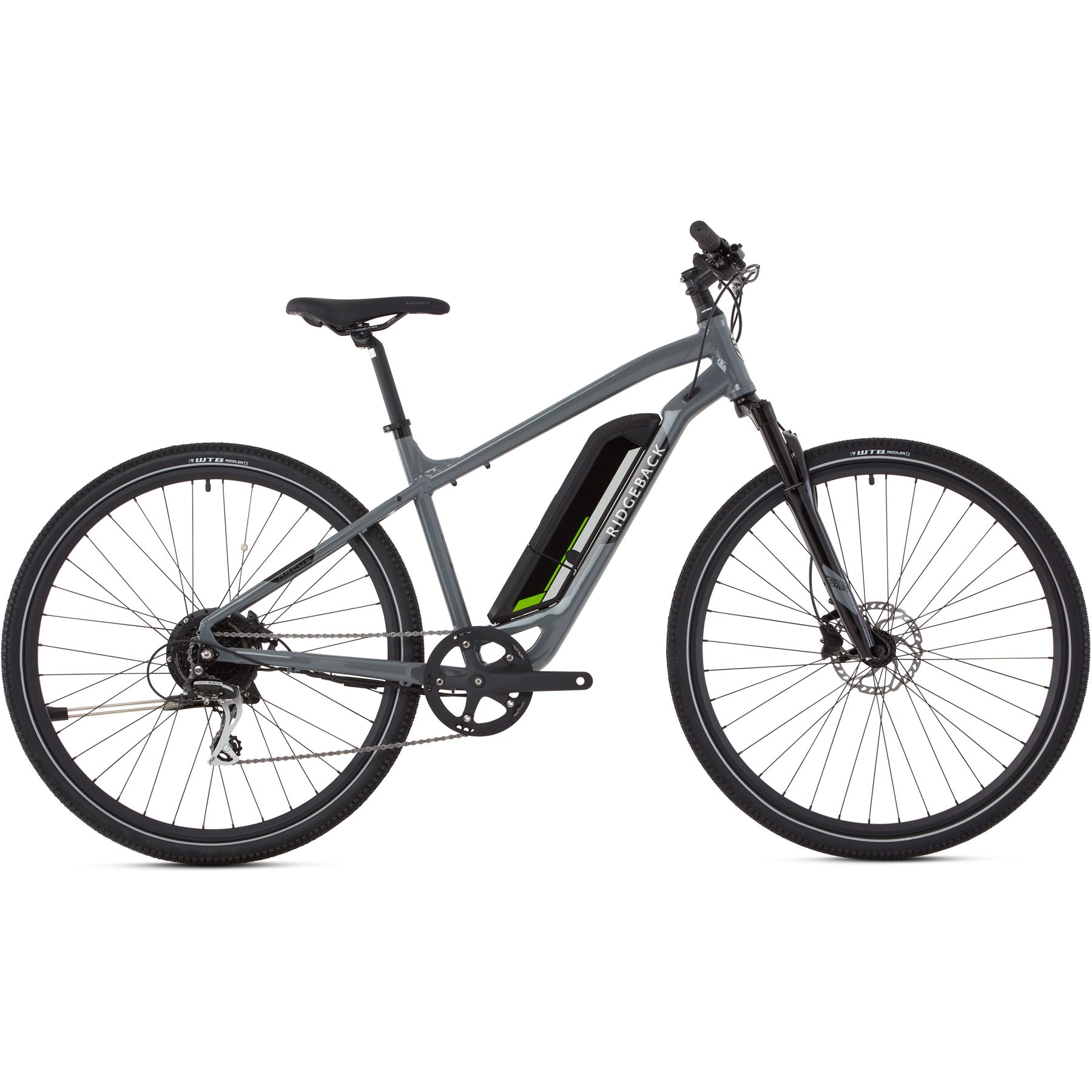

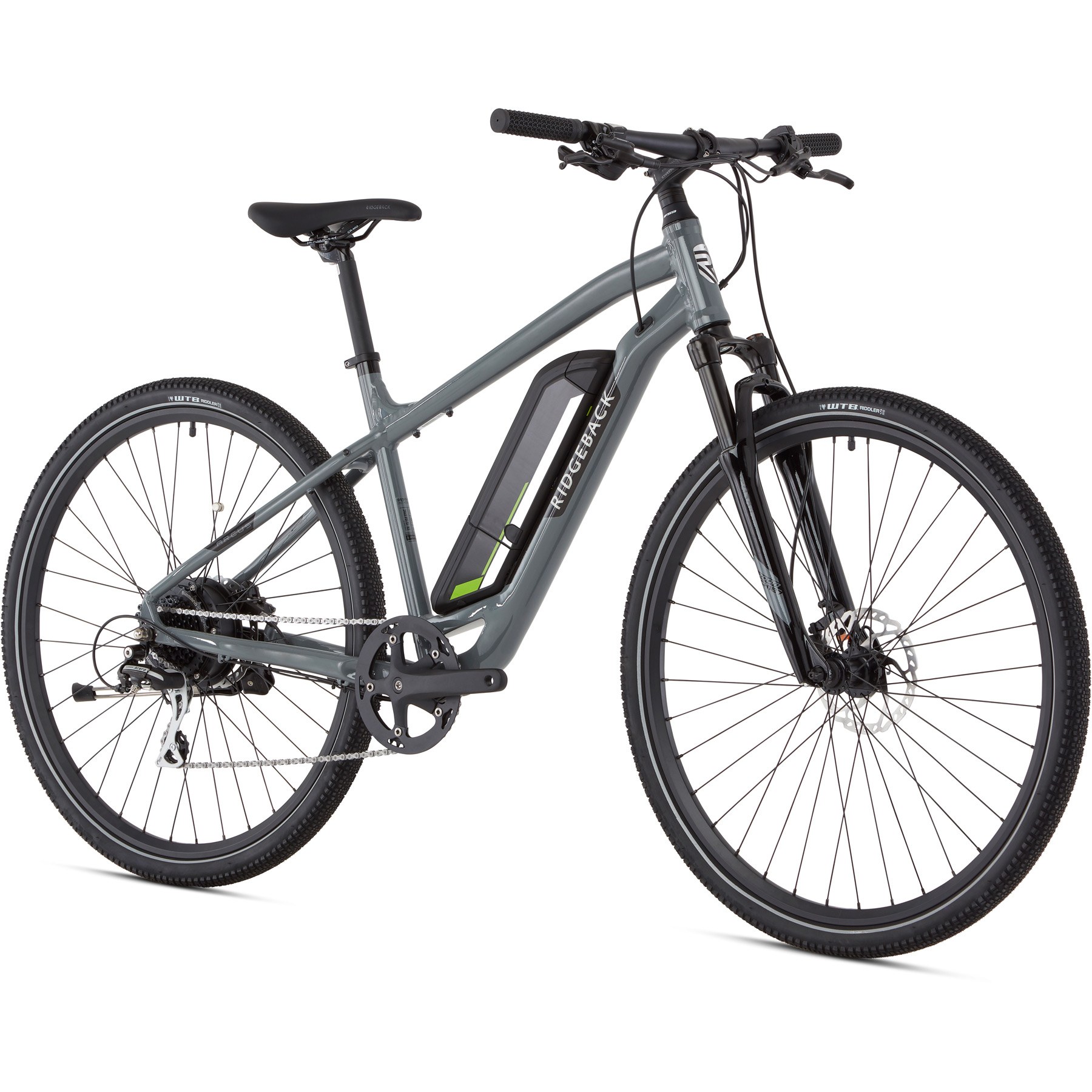

Ridgeback Arcus 1

by Ridgeback

Large available March 2021

The second generation of the Arcus has become more refined without loosing any of its original practical charm. The Arcus 1 is built around a 6061 heat treated aluminium lightweight and strong frame which is paired with a 63mm travel suspension fork which makes sure you maintain a comfortable ride whatever the terrain. Equipped with a 313wh battery and a Sportdrive M155 250w/40nm hub motor we have made sure you are covered when you require any type off assistance out on the ride.

Frame	SPORTDRIVE 6061 HEAT TREATED ALUMINIUM
Rear Shock
Fork	ZOOM CH187, 63MM TRAVEL
Headset	FSA HS NO.10 1-1/8"
Shifters	SHIMANO ACERA SL-M310 8-SPEED
Rear Derailleur	SHIMANO ACERA RD-M360 8-SPEED
Front Derailleur	N/A
Chainset	SPORTDRIVE 170MM, 42T
Bottom Bracket	N/A
Chain	KMC X8E
Cassette / Freewheel	SHIMANO CS-HG31-8 11-34T
Rims	ALLOY J19SZ 36H

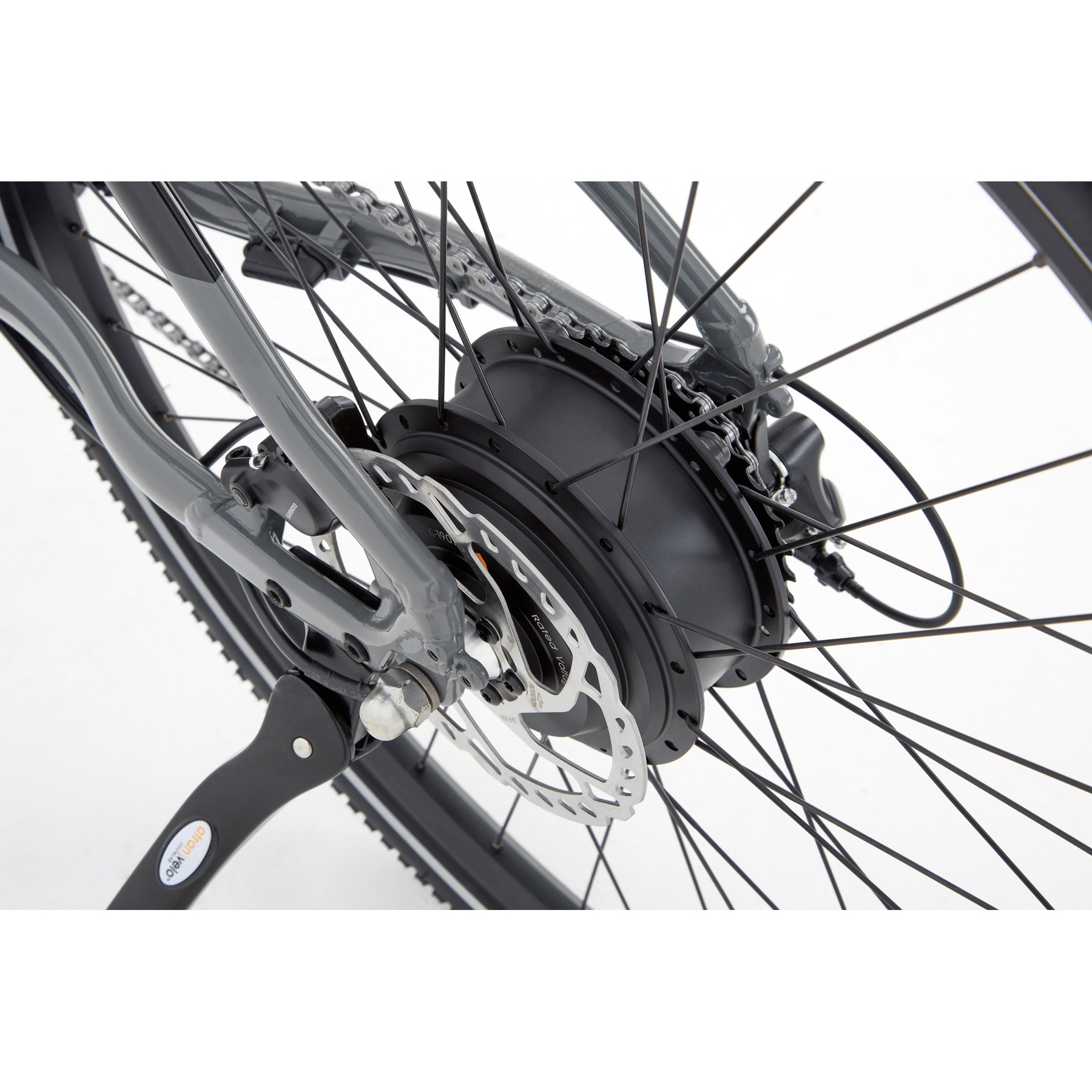

Hubs	KT-TD8F / SPORTDRIVE M155 36H
Spokes	STEEL 14G
Tyres	WTB RIDDLER 700x45C REFLEX
Brakes	SHIMANO BR-MT200 HYDRAULIC BRAKES
Brake levers	SHIMANO BL-MT200 HYDRAULIC BRAKES

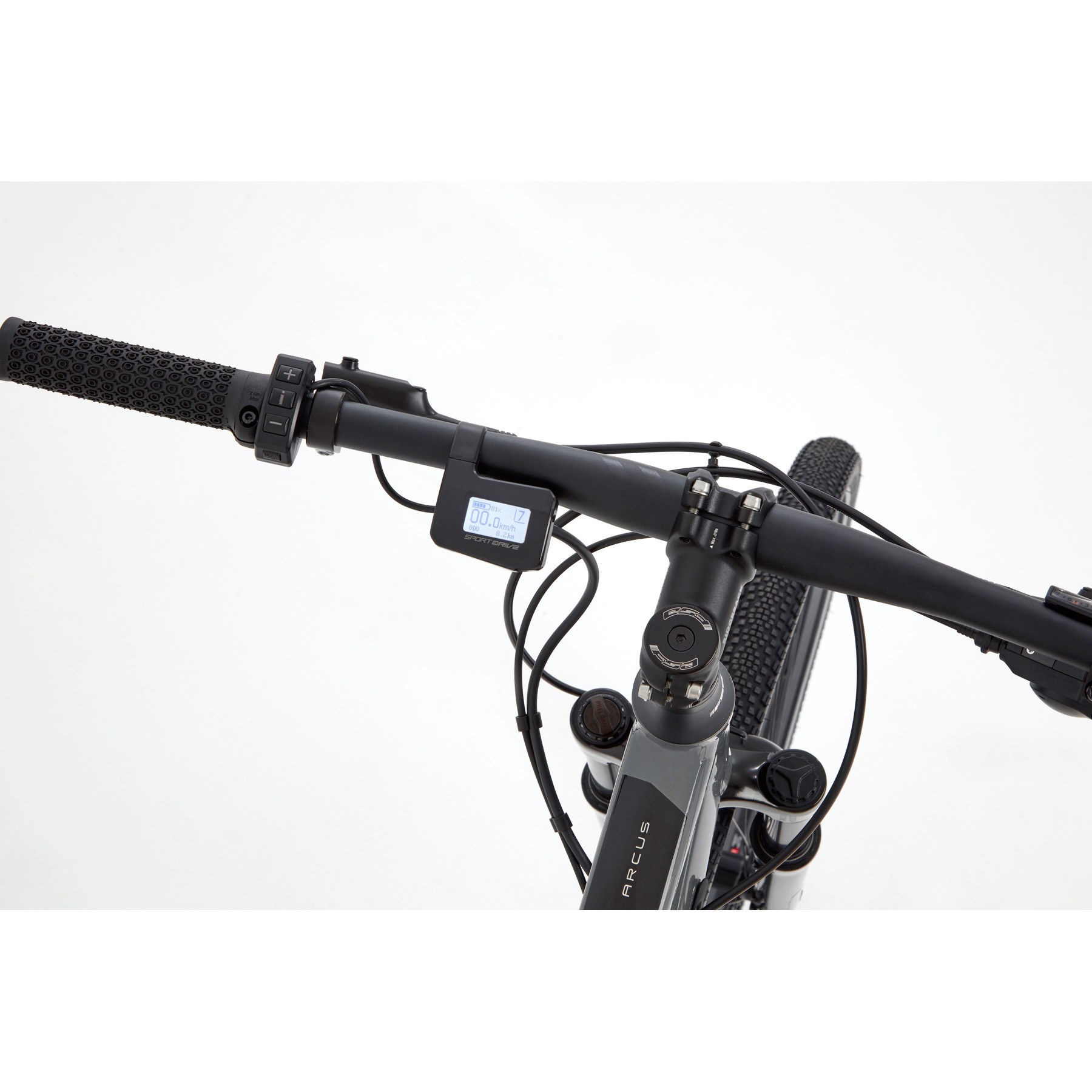

Handlebars	ALLOY 9DEG BACKSWEEP, 31.8MM BAREBORE, 680MM WIDTH
Stem	ALLOY, 65MM, +9DEG
Saddle	RIDGEBACK METRO
Seatpost	ALLOY 27.2x350MM
Pedals	RIDGEBACK METRO
Drive Unit	SPORTDRIVE M155, 250W, 40NM
Battery	SPORTDRIVE 313WH
charger	SPORTDRIVE 2AH
