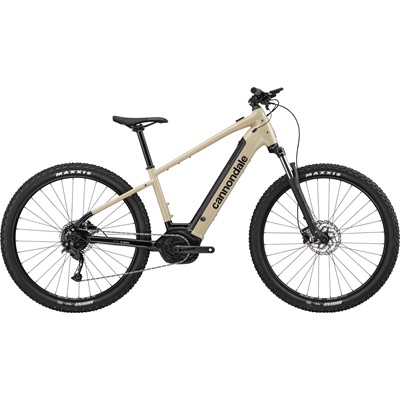

Cannondale Trail Neo 4

An e-mountain bike that will raise your game and ignite a passion for the trail.

Low-impact trails, up and down hills

Speed, efficiency, handling

Lightweight SmartForm C1 Alloy frame, dual battery ready / SR Suntour XCM 34 Boost 100mm fork
Shimano Deore 10-speed drivetrain / hydraulic disc brakes
Bosch Performance Line drive unit / 500Wh battery / Range: up to 114km

Model Code	C61013U
Name	Trail Neo 4
Category	Electric
Platform	Trail Neo
Segment	E-Mountain
Frame	SmartForm C2 Alloy, removable 625Wh downtube battery, integrated front running light, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection
Fork	SR Suntour XCM 32, 100mm, Coil, 46mm offset
Rear Shock	Null
Rims	WTB STX i25 TCS, 32h, tubeless ready
Hubs	(F) Shimano HB M4050 / (R) Shimano TX5058, 12x148mm thru-axle
Spokes	DT Swiss Champion 2.0
Tires	Maxxis Ardent, 29x2.4" (M, L, XL) 27.5x2.4" (S), EXO Protection
Pedals	Not included
Crank	Bosch Gen3, 170mm, 34T
Bottom Bracket	Null
Chain	Shimano HG93A, 9-speed
Rear Cogs	Shimano HG200, 11-36, 9-speed
Front Derailleur	Null
Rear Derailleur	Shimano M3100
Shifters	Shimano M3100, 9-speed
Handlebar	Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm, 31.8mm
Grips	Fabric Funguy
Stem	Cannondale 3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 0-degree
Headset	Integrated, 1-1/8 to 1.5", sealed bearings
Brakes	Shimano MT200 hydraulic disc, 180mm RT10 rotors
Brake Levers	Shimano MT200 hydraulic disc
E-bike Display	Bosch Purion 200
E-Bike Battery	Bosch Powertube, 500Wh
E-bike Charger	Bosch 2A
E-bike Drive Unit	Bosch Performance Line Cruise
Saddle	Cannondale Ergo XC
Seatpost	Cannondale 3, 6061 Alloy, 31.6 x 350mm
Speeds	9
Weight
Sizes Available	SM, MD, LG, XL
Chain Device	Null
Connectivity	Null
Fork Travel	100mm
Frame Travel	Null
Extra's	Pre-installed light cables
